Pit Aluminum Alloy Shell Annealing Furnace And Quenching Furnace Applicantion
Aluminum alloy quenching furnace is suitable for quenching, aging and other heat treatment of medium and small aluminum alloy parts. Due to the particularity of the workpiece and the process, the electric furnace is required to be in temperature control accuracy, temperature control deviation,
It has high technical performance in terms of furnace gas uniformity and so on.
1. Pit Aluminum Alloy Shell Annealing Furnace And Quenching Furnace Structure
The complete set of equipment consists of furnace body, hot air circulation system, furnace cover lifting mechanism, control cabinet and other systems.
2.Pit Aluminum Alloy Shell Annealing Furnace And Quenching Furnace Advantage
The shell of the furnace body is formed by welding plates, the lining refractory layer is made of high-quality refractory bricks, and the insulation layer is made of fiber structure. In order to ensure that the furnace lining has both good thermal insulation performance and certain structural strength, the furnace chamber is made of high-aluminum fiber folded blocks.
3. Pit Aluminum Alloy Shell Annealing Furnace And Quenching Furnace Technical Parameter
| Model | IRIS-JQ65 |
| Electric furnace power | 65kw |
| Input voltage | 480v 60 HZ |
| Effective size | Ф700mm*1000mm |
| Maximum temperature | 750℃ |
| Number of temperature control zones | 1 zone |
| Temperature control accuracy | ≤±2℃ |
| Furnace Size | 1600mm×1800mm×2100 mm |
| Furnace Weight | 2800kg |
| Productivity | 100kg/h |
| Heating method | High temperature resistance tape |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over temperature alarm |
| | |
Product Tags:
|
|

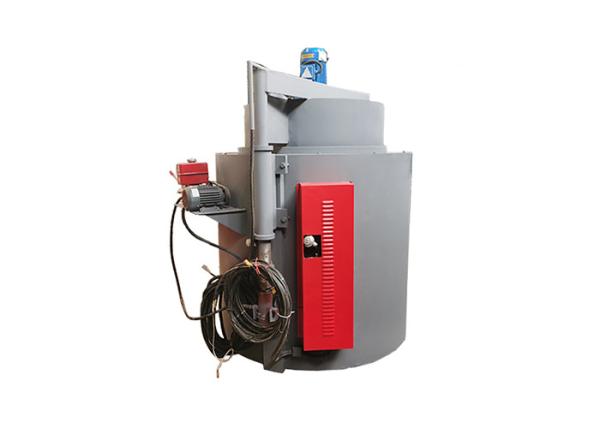

Pit Aluminum Alloy Shell Quenching Annealing Furnace 100kg/H Images
|
