Electric 70kw 50kg Small Induction Melting Furnace Medium Frequency

Name: Electric 70kw 50kg Small Induction Melting Furnace Medium Frequency
Brand: IRIS
Price: 1500 USD

Quality Electric 70kw 50kg Small Induction Melting Furnace Medium Frequency wholesale

Brand Name : IRIS

Model Number : IS-MF-70

Certification : CE

Place of Origin : Henan,China

MOQ : 1set

Price : USD1500-5500 /SET

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500SETS per month

Delivery Time : 7 days

Packaging Details : Wooden case

Voltage : 380V 50Hz 3phase

Power : 70 kw

Application : Melting factory or personal shop

Size : 460*270*450mm

Temperature : 500-2300 degree

Cooling way : water cooled

MOQ : 1SET

OEM : accepted

Contact Now

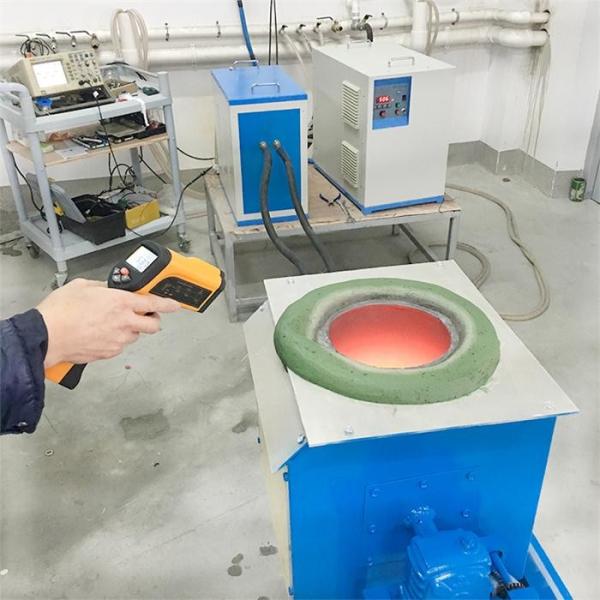

Electric medium frequency 50kg small induction melting furnace

The Characteristics of medium frequency induction melting furnace:

The melting machines can be used for melting steel, stainless steel , brass, aluminum, gold silver etc.Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.Wide frequency range from1KHZ-20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.When melting, the cold furnace need 50-60minutes.The hot furnace need 20-30 minutes.

Technical Parameters of IGBT Medium Frequency Induction Melting Furnace:

Melting furnace model	Steel and stainless steel	Gold, copper,silver	aluminum
30kw	2kg	10kg	3kg
40kw	5kg	20kg	6kg
50kw	10kg	30kg	10kg
60kw	18kg	50kg	20kg
80kw	25kg	100kg	30kg
120kw	50kg	150kg	50kg
160kw	100kg	250kg	100kg

We Guarantee:

1. Standard wooden case packaging.

2. Foam and plastic are used for shockproof and waterproof.

Steel belt and rivets are used to fasten the wooden case.
3. The bottom pallet can bear 3 times weight than goods.

4. Delivery time: 7-25 working days
