220V Temperature Control Induction Bearing Heater For Bearing Fitting

Name: 220V Temperature Control Induction Bearing Heater For Bearing Fitting
Brand: IRIS
Price: 600 USD

Brand Name : IRIS

Model Number : IB-03

Certification : ISO9000

Place of Origin : China

MOQ : 1set

Price : USD600-USD800/Set

Payment Terms : T/T,Credit card

Supply Ability : 10 Sets/weeks

Delivery Time : Within 5days

Packaging Details : Standard export wooden box package

Product name : 25 KVA 220 V Induction Bearing Heater

Vertical heating inner hole : 80-180mm

Horizontal heating inner bore : 180-500mm

Maximum outer diameter : 750mm

Maximum width : 280mm

Apparent power : 25KVA

Current : 66A

Load bearing : 300KG

Magnetic probe : K type ( Accuracy: ±5 ℃)

Warranty : One Year

Contact Now

Intelligent Temperature Control Bearing Heater Induction Industrial Disassembly Portable

Feature:

Quick heating, high efficient and energy saving
Clean: no oil fume or oil vapor or wastes to be dealt with
Safe, clean and environmentally-friendly
Quick, but no damage for the bearing
Design concept :practicality, reliability, convenience and durability.

Parameter:

Model	IB-01	IB-02	IB-03
Vertical heating inner hole:	20-140mm	40-160mm	80-180mm
Horizontal heating inner bore:	140-300mm	160-400mm	180-500mm
Maximum outer diameter:	400mm	550mm	750mm
Maximum width:	140mm	200mm	280mm
Voltage	220v	380v	380V
Apparent power	5KVA	8KVA	25KVA
Current	23A	23A	66A
Load bearing	50KG	100KG	300KG
Adjustment method	Time(0-9999s)/Temperature (0-300℃)
Magnetic probe:	K type ( Accuracy: ±5 ℃)
Machine weight	55KG	85KG	160KG
Mahcine size	520380350mm	600380490mm	1300400825mm

220V Temperature Control Induction Bearing Heater For Bearing Fitting

Working conditions

The heater is designed for indoor use in an industrial environment.
The ambient temperature can be from -10℃ to 50℃ (14℉-122℉).
The ambient humidity can be between 5%-90%.

Product Tags:

220V Induction Bearing Heater

25KVA Induction Bearing Heater

induction heater for bearing fitting

Quality 220V Temperature Control Induction Bearing Heater For Bearing Fitting wholesale

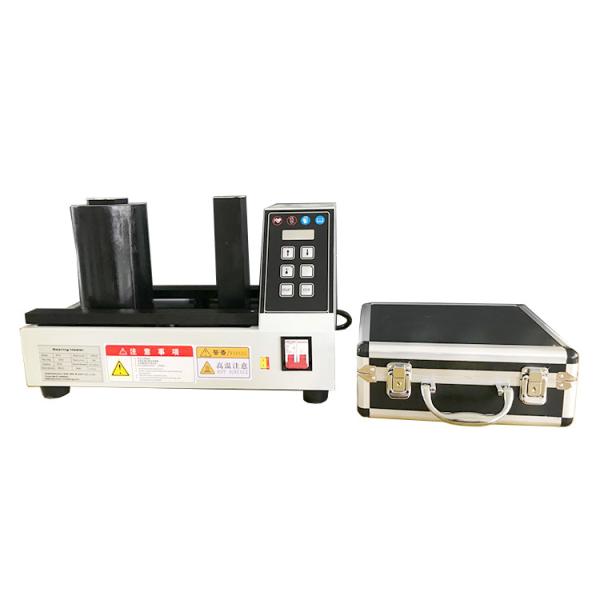

220V Temperature Control Induction Bearing Heater For Bearing Fitting Images
